Signature Pad Zeta – With backlight

Signature Pad Zeta – With backlight

0

£224.54

Display: 11.4 cm (4,5″) Mono LCD, optional with LED-backlight
Active Signing Area: 96 x 60 mm
Dimensions (W x D x H) : 145 x 177 x 12 mm
Connection: USB (approx. 2.7 meters cable length)

Availability:Out of stock

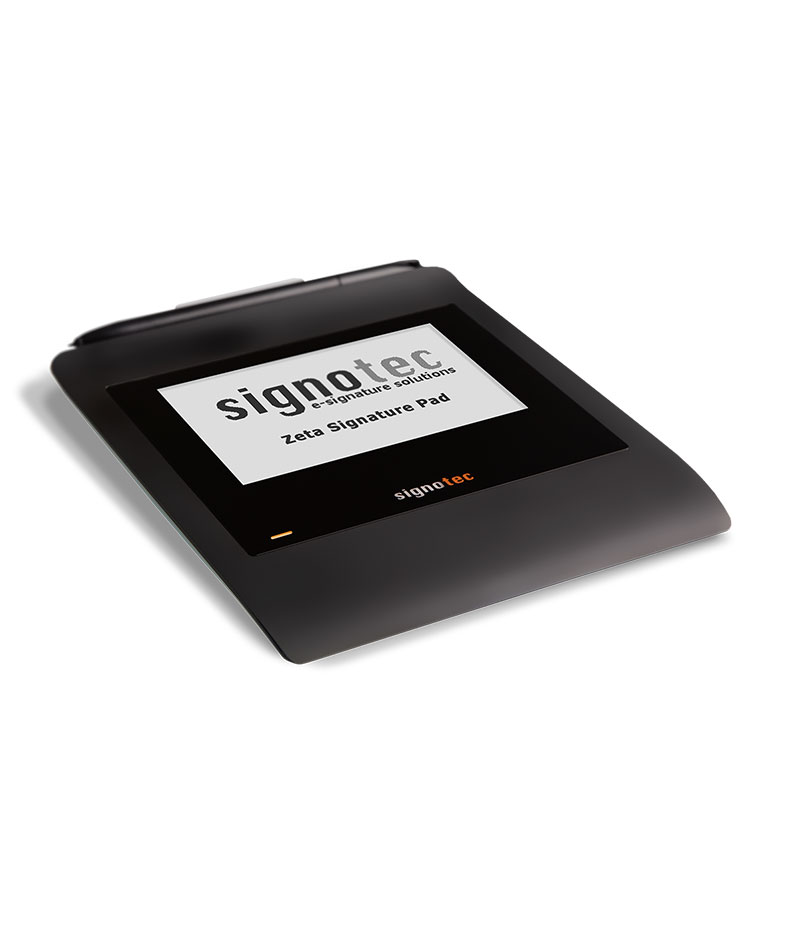

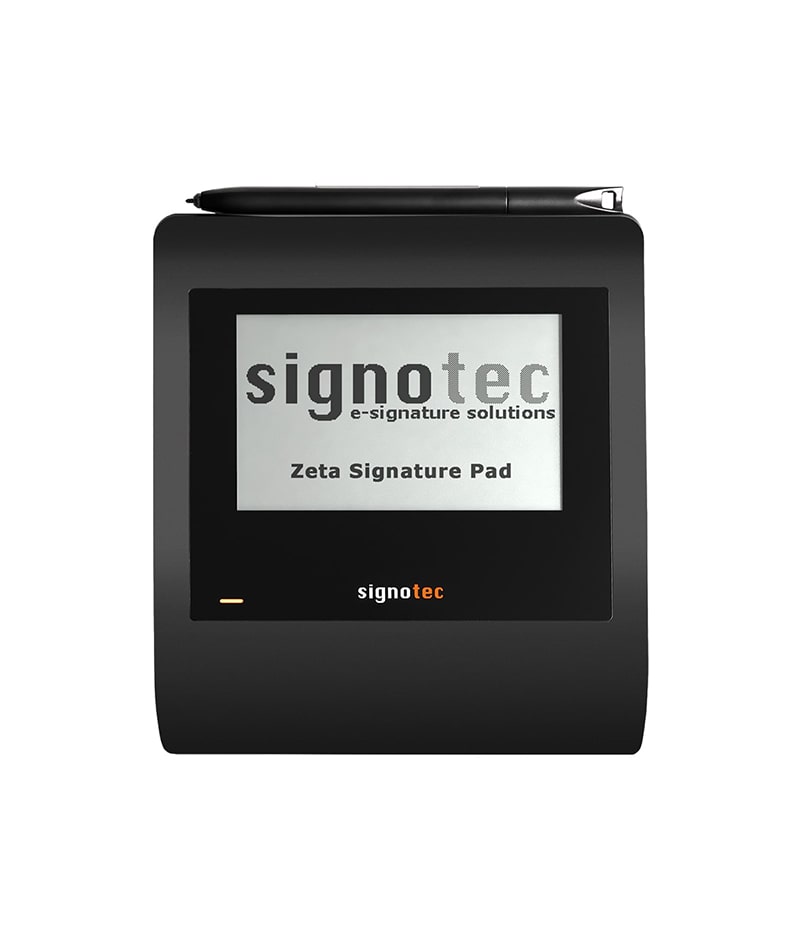

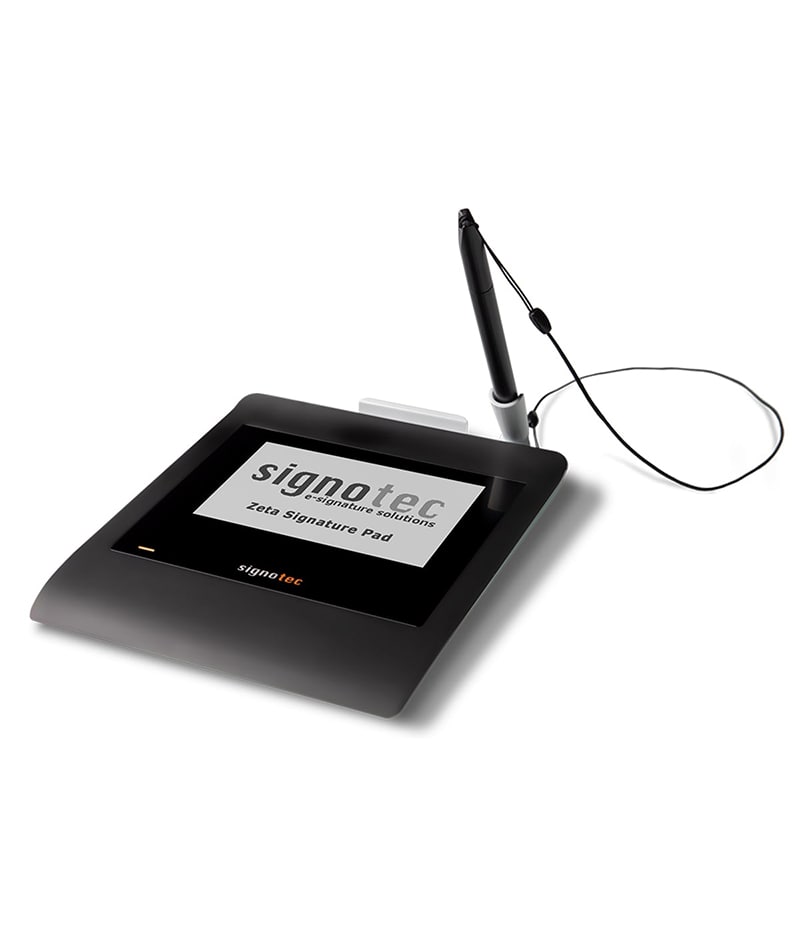

The LCD Signature Pad Zeta is the latest model in the signotec family and has an approx. 4.5-inch (11.4 cm) monochrome display and the popular, durable ER technology. The sensor reacts exclusively to the special battery-less pen and not only records movements with 1,024 pressure levels and up to 500 Hz sampling rate, but also detects the movements of the pen in the air.

This enables the signature to be digitised in great detail and thus has a correspondingly high evidential value in court proceedings. Due to the device design, a very long lifespan of up to 30 million signatures can also be expected from this pad.The signature Pad Zeta thus perfectly closes the gap between the low-cost signature Pad Sigma and the signature Pad Gamma as the most cost-effective device with ER technology so far.

Like all models of the signature pads, the signature Pad Zeta was developed entirely in-house “Made in Germany “, combining decades of experience and competence. Furthermore, all signature pads have unique security features, such as the signature and RSA encryption in the pad’s secure memory. Due to the flat surface without edges between sensor and housing, all pads offer an extremely comfortable signing experience.

Backlight

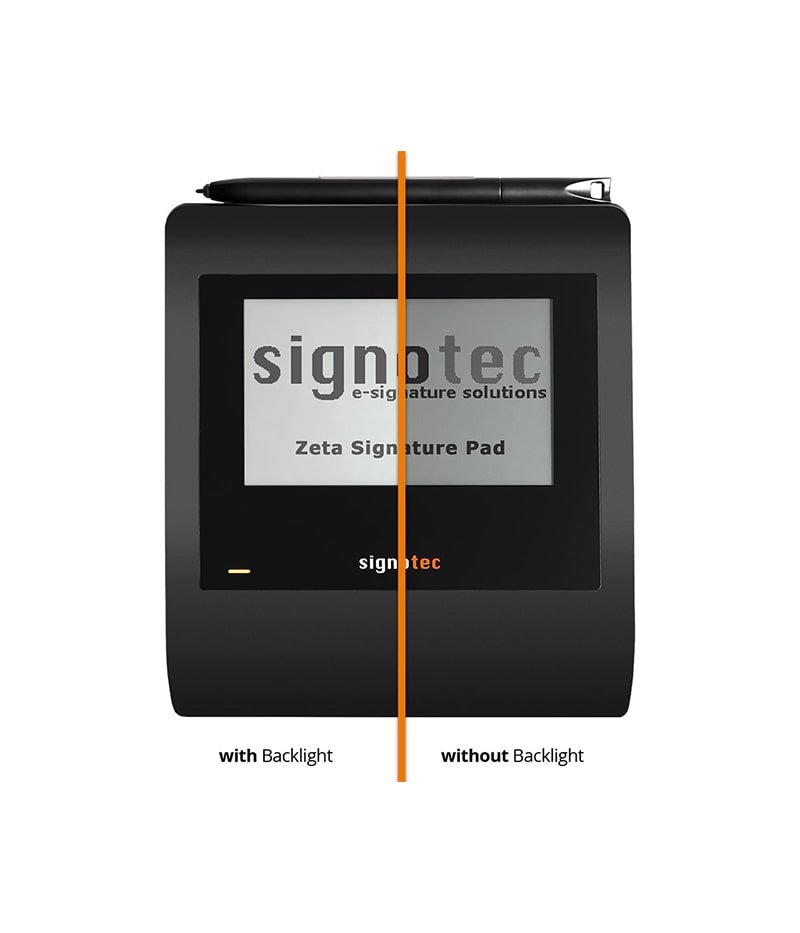

The signotec Zeta signature pad is available with or without backlight. The device with backlight is particularly suitable if you have to work under changing or unknown light conditions, e.g. in field service.

FTDI (vCOM) The signotec Zeta signature pad can optionally be supplied with an FTDI chip. This chip converts the USB signal into a virtual COM signal, so that the device can be used in virtual environments, such as Remote Desktop (RDP) or Citrix. The mode can not be changed from USB to vCOM or vice versa. For operation, the free FTDI driver is required. You can find it in the download area of ​​our website.

Highlights - Signature Pad Zeta

Display
Type11.4 cm (4,5″) Mono LCD, optional with LED-backlight
ColoursMonochrome
Resolution320 x 200 pixels
Scroll-FunctionNo
Sensor
TypeERT (Electromagnetic-Resonance-Technology)
Penbatteryless special pen with changeable pen tip
Surfaceparticularly resistant, hardened special glass
Life expectancyapprox. 30 Million Signatures
Pressure Stages1.024
Sample Rate500 Hz, 4D Samples (x, y, z, t)
Active Signing Area96 x 60 mm
Resolution9.598 x 5.998 Pixel ≙ 2.487 x 2.499 ppi
Security
EncryptionAES- and RSA-Encryption
Secure ModeReal-time display of the signature without usable biometrics
PDF-SignatureRSA signature creation device inside the pad
Hash-AlgorithmsSHA-256 und SHA-512
More information can be found below in the tab “Security features”.
Connection
ConnectionUSB (approx. 2.7 meters cable length)
Power SupplyUSB
Network (TCP/IP)Yes, with optional signotec USB-Ethernet-Adaptor
Terminal Server / CitrixYes, optional with hardware FTDI chip or signotec vCOM driver
Citrix Virtual ChannelYes, optional with signotec Virtual Channel driver
Others
Dimensions (W x D x H)145 x 177 x 12 mm
Weightapprox. 230 g
Status LED2-colour status LED
SlideshowYes, you can configure one standby image inside the pad.
CustomizationChange of housing color and logo print (on request)
Warranty2 years

RSA-Security Features

The signature pads have the highest security mechanisms available. This allows a complete chain of evidence in dispute. Depending on the integration, different techniques are used:

  • PDF documents can be signed inside the pad and not in the insecure environment of the PC.
  • The biometric data of the signature can be RSA-encrypted inside the pad using a public key.
  • RSA-signature of the displayed content and signature.
  • Upon delivery, each pad has a separate and unique RSA certificate for signing.
  • Storing of custom RSA-certificates inside the pad.
  • The pad can generate a RSA certificate.
  • Supported schemes are RSA PKCS # 1 v1.5 (with or without the hash OID), PKCS # 1 v2.1
  • Certificates can be certified by a Root Authority
  • Supported hash algorithms are SHA-1, SHA-256 and SHA-512.
Weight230 g
Dimensions145 × 177 × 12 mm
